Detalhes do produto:
|
| Certificação: | CE, CE& SGS | Nome: | A vitrificação dobro oca isola o fabricante de equipamento de vidro da máquina de processamento |
|---|---|---|---|
| Fonte de alimentação: | 380V, 50HZ ou personalizado | Pressão de ar: | 0.5~0.8Mpa |
| Realçar: | 45m/Min Insulating Glass Production Line,Linha de produção de vidro de isolamento laminada,máquina de vidro da vitrificação 45m/Min dobro |
||

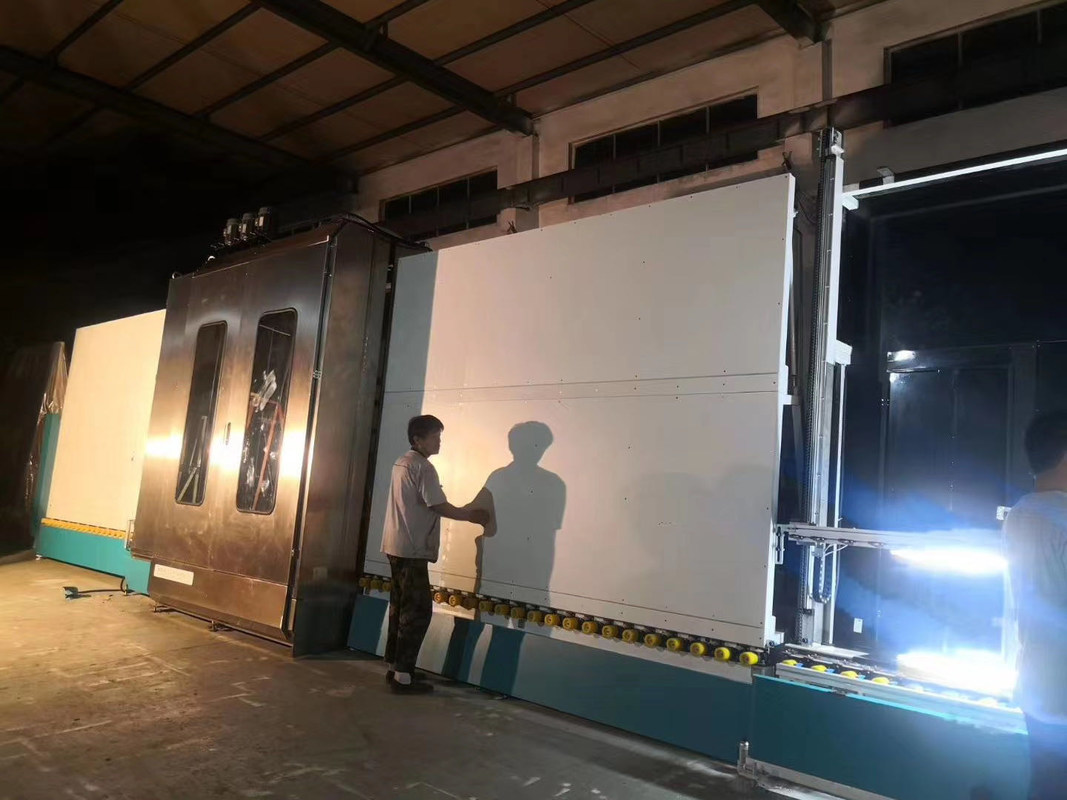

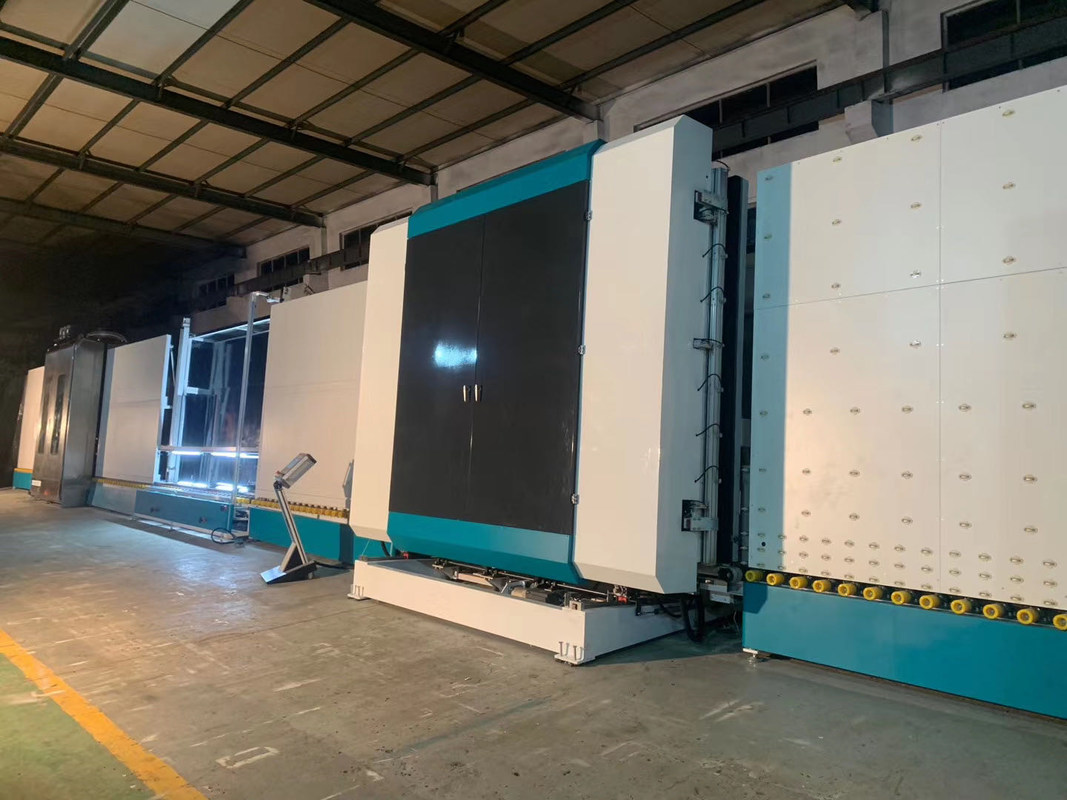

Hollow double glazing insulate glass processing machine equipment manufacturer
Insulation glass machine can complete the following functions: Glass cleaning, aluminum frame placement, ordinary double glass, three ordinary glasses, shaped glass and double double glass press.
Insulation glass machine is special equipment in the manufacture of aluminum strip insulation glass, which has the advantages of small footprint, high efficiency, reliable performance and easy maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, easy and intelligent operation;
2, World famous brand of main ingredients ensure stable operation and long service life;
3, Designed for high quality glass processing such as reflective glass, Low-E glass, tempered glass and laminated glass.
4, large glass processing scale, various models and customization available;
5, large output capacity, 1,000pcs output in one working day;
6, workable for double layer, triple layer, stepped sheet and abnormal shape insulation glass;
7, automatic argon air gas filling during the glass sheet assembly process;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
