Máquina butílica automática ultrarrápido da extrusora para o processamento de vidro de isolamento

heigh technology Ultra-fast automatic butyl extruder machine for insulating glass processing

      LIJIANG GLASS-FOR WORLD PROCESSING GLASS MANUFACTURE SERVICE

Express Speed Butyl Extruder machine for Insulating Glass with New Technolgy LJJT01

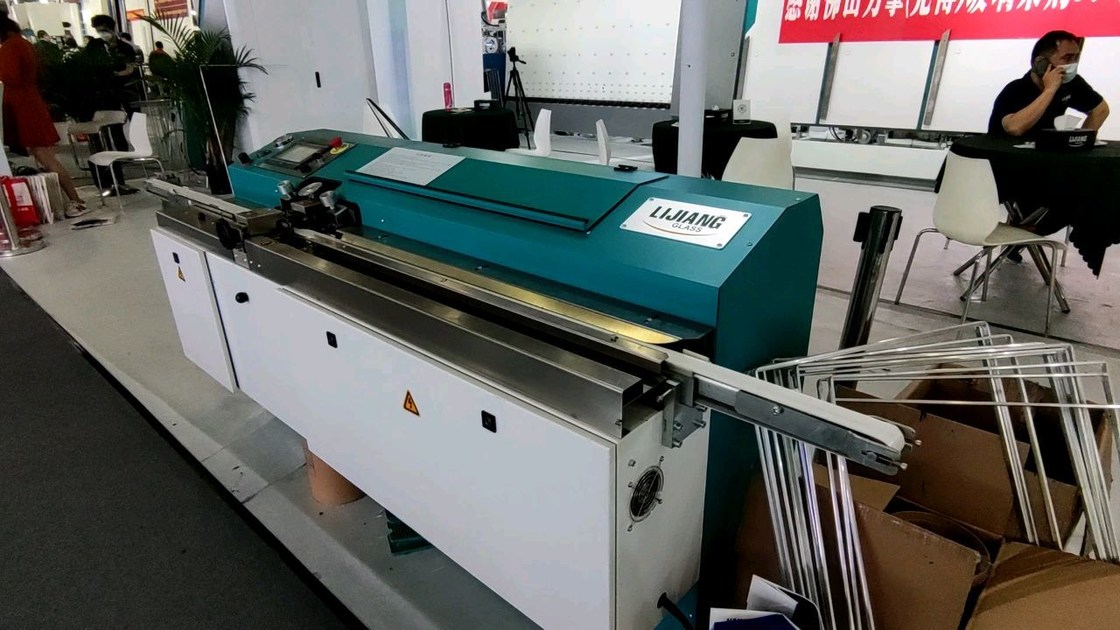

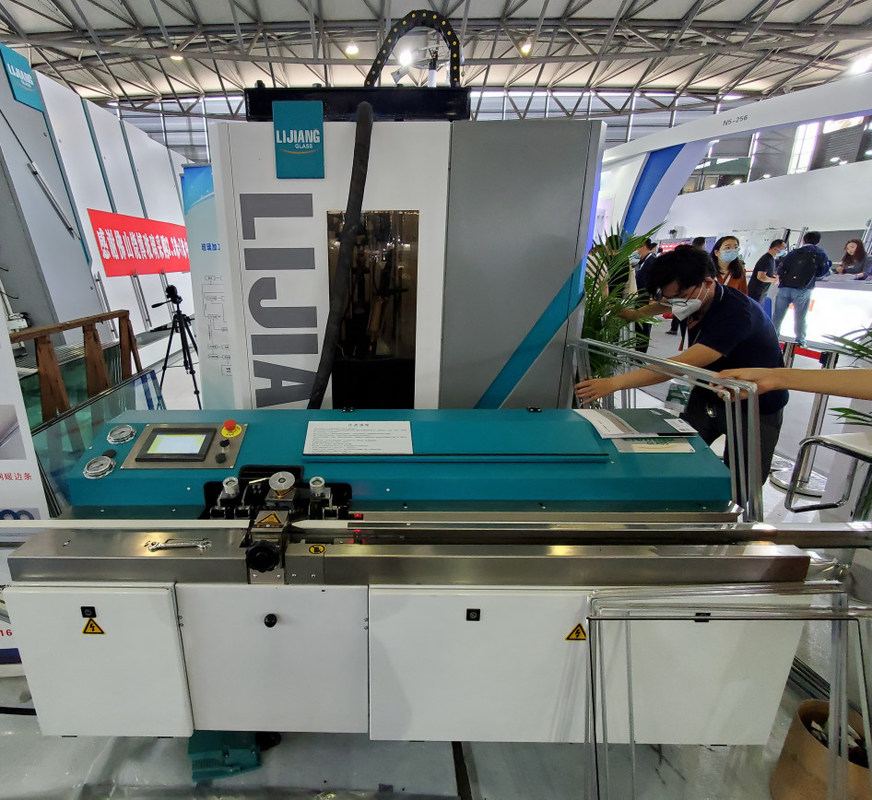

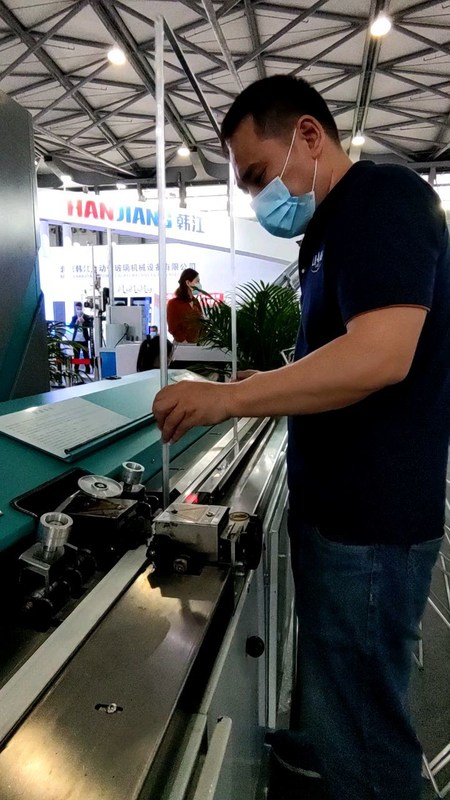

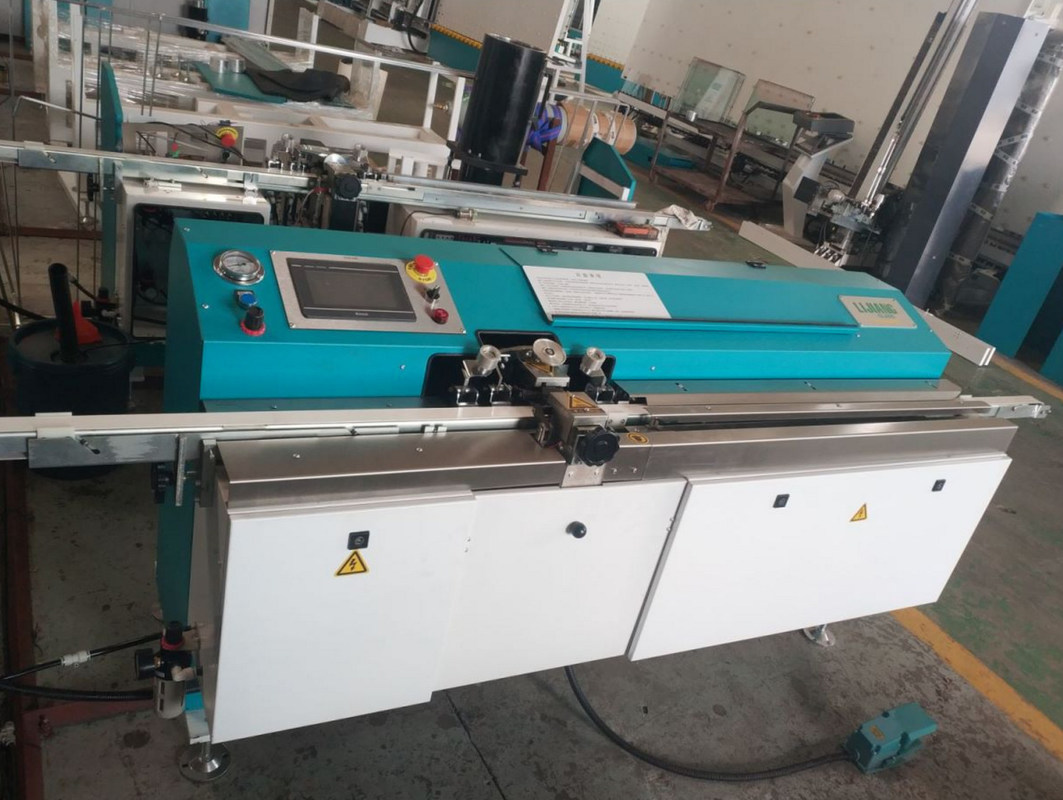

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment uses a large electrical control panel which makes the operation easier. The conveyor of aluminum is controlled by a frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with energy-saving. Its squeezing system adopts a pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses a vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of the squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of the squeezing head can be adjusted automatically according to the different aluminum spacers. The machine has reached worldwide technology with the characteristic of complete function and stable working mode.

Main feature

・ Touch touch operation

-The temperature is stable, which is convenient for automatically adjusting the sealing material.

・ Change more

・ Automatic recognition of foil

♦♦♦Easy to change butyl system

♦♦♦Automatic spacer width control

♦♦♦Shape spacer model

♦♦♦Germany Siemen system

Automatic Butyl Robot

Main feature

· PLC control system, touch screen interface.

· Frequency control system

· Abroad technology, pneumatic and hydraulic supercharging system.

· Automatic centering and clamping structure.

· Separate extruder head structure.

· Automatic butyl volume display function.

· Circular arc butyl sealing structure.

· Extruder head height adjustment structure

· Preheating function Butyl cylinder swing mechanism

· Important control parts adopt imported brand.

technical parameter

Hot Sales Automatic Spacer Bending Machine of Insulating Glass LJZW2020

Main feature

• German Siemens PLC control system, touch screen interface

• Japan FUJIC NC Servo Control System

• 4 spacer sized storage units

• Use a servo system to control the supply mechanism

• The aluminum spacer is automatically cut and sent.

• Auxiliary function for adjusting bending of large aluminum frame

• Aluminum spacers are available in a variety of sizes and sizes

• Continuously bend the shaped spacer frame

• Guard board isolated on the outside of the bender

• Automatically avoid connections during bending and cutting

• Suspend and reset the device to handle equipment failures

• Aluminum spacers, Technoform, Alupro, Thermomix, worm spacers can be bent (Swisspacer)

• USB input function, reading Excel format files directly, etc. (optional)

• Stainless steel (optional)

• Automatic drill gas filling hole (optional)

• Connect to ERP system (optional)

• Spacer print code function (optional)

• Printing of label sticker function (optional)

♦Number code are request to spply good service in the future♦

♦ Printing label sticker function (Optional)♦

♦Spacer printing code function (Optional)♦

Technical data

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.

The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.

With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
