Detalhes do produto:
|
| Nome da máquina: | Máquina butílica automática da extrusora | Tipo: | Vidro de Lijiang |
|---|---|---|---|
| Cor: | Opcional | Peso da colagem: | 7kg ou 200L |
| Material da colagem: | Colagem butílica | Espaçador: | 5.5mm a 27mm |
| Correia da colagem: | Não vara | ||
| Realçar: | máquina de vidro dobro,extrusora quente do butilo do derretimento |
||

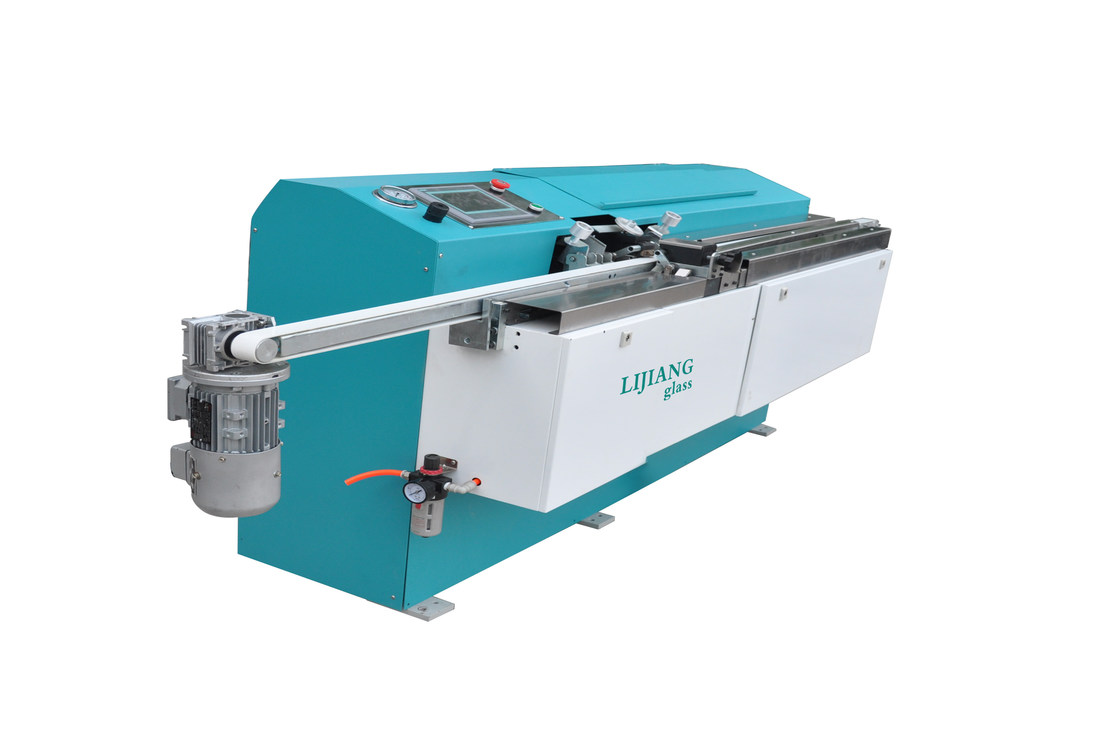

7Kg Butyl Glue Coating Machine For Making Insulating Glass Units
Main features of the butyl extruder machine :
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-50m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW ,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful Spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, South America, the Middle East, Southeast Asia, nearly 30 countries and regions.
At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research.
So far, we have independently produced the Vertical automatic IG production line with filling gas, the Vertical IG sealing robot, the vertical low-e edge deletion machine, the warm edge spacer bending machine, the New butyl extruder machine, and the desiccant filling machine, taotally about 20 Double glazing glass machinery. LIJIANG GLASS's technology and quality have reached the leading level in China.
Other Butyl extruder machine :
200L butyl glue barrel for Butyl extruder machine
General Butyl extruder machine
Full automatic butyl extruder machine
Germany famous components
47m/min Fast speed
6g /m Most cost-effective
15 mins For pre-heating
In 2016, we won the title of Jinan Golden Seed Enterprise and government subsidy by virtue of the first fully automatic butyl extruder machine with six axis independently developed.
In 2018, we won the title of national high-tech enterprise. During this period, we cooperated with many famous universities and the 53 Research Institute of the Ministry of ordnance industry to develop high-tech products.
Our corporate vision:
To make glass processing simpler and more intelligent, to be a high cost-effective specialty in the glass machinery industry, to better feed back and serve our customers, employees and society with better products and better services, and to make our life better!
